Description

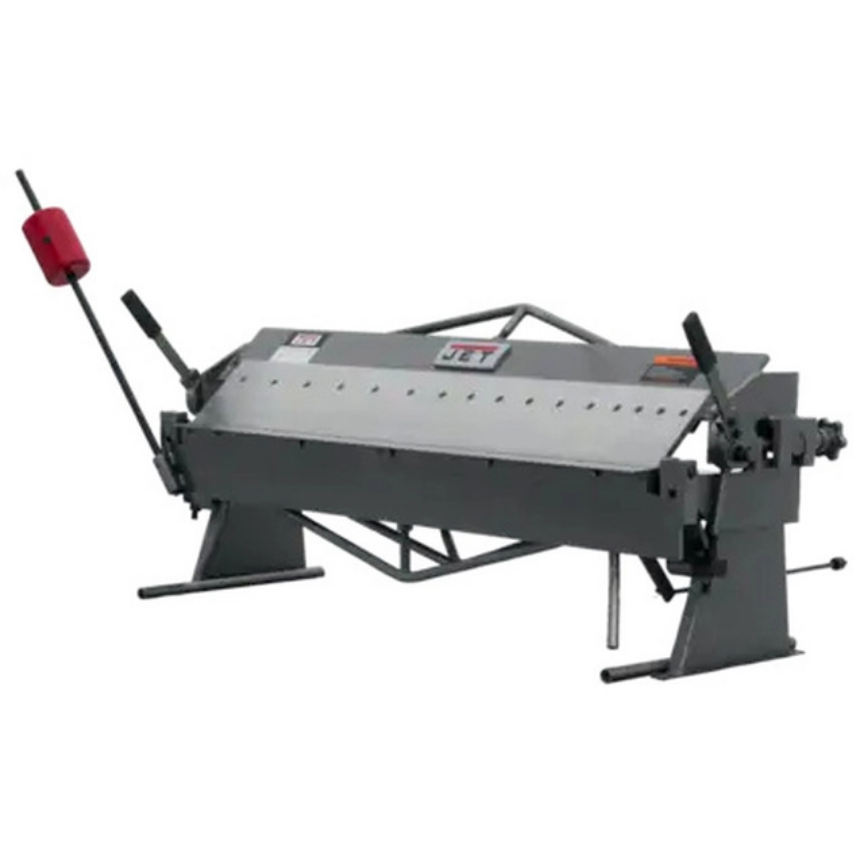

Box and Pan Brakes from JET are perfect for the larger, high volume shop that requires versatility yet demands rugged durability and bending precision
- Incorporates all the features of our standard hand brakes but with greater range of applications
- Sectioned fingers are easily removed for box bending and special forming operations
- Stop rod for repeat bending
- Total of 16 assorted size section fingers
- With fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
| Specification | Value |
|---|---|
| Bending Length Capacity (In.) | 50 |
| Style (Type) | Bench Box and Pan Brake |
| Maximum Box Depth (In.) | 4 |
| Maximum Lift of Beam (In.) | 1-1/4 |
| Beam Adjustment (Front to Rear) (In.) | 5/8 |
| Mild Steel Capacity (Gauge) | 16 |
| Nose Radius (In.) | 1/32 |
| Weight (Lbs.) | 448 |
| Finger Nose Angle (Deg.) | 45 |
| Overall Dimensions (L x W x H) (In.) | 66 x 23-1/4 x 32-1/4 |
| Height | 32.2500 |
| Length | 66.0000 |
| Width | 23.2500 |
| Weight | 550.0000 |
